| Permanent Magnet Lifter |
Powered by strongest NdFeB Permanent Magnet and with our unique design, our lifter has below features:
- Small and most compact.
- No need of electricity and no dangerous from sudden cut off of electricity.
- No damage to contacting surface of lifted objects.
- The position of magnetism on/off switch is secured by a BUTTON.
- With a V shape slot through the center of holding surface, both round and flat steel objects can be lifted.
- Safety Factor of all types is 3.5 Minimum.
|
| |
  |
| |

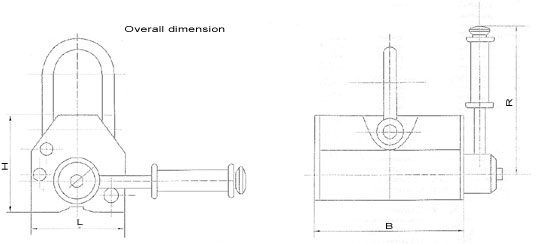

Technical Specification Voltage Rated 200DC Working Duration(TD):60%
P/N |
Rated Lifting Strength (KG) |
Pull-off Strength (KG) |
L (mm) |
B (mm) |
H (mm) |
R (mm) |
Max Working Temperature (oC) |
Weight (KG) |
PML-01-01 |
100 |
350 |
62 |
92 |
67 |
126 |
80 |
3 |
PML-01-02 |
300 |
1050 |
92 |
162 |
91 |
155 |
80 |
10 |
PML-01-03 |
600 |
2100 |
122 |
232 |
117 |
196 |
80 |
24 |
PML-01-04 |
1000 |
3500 |
176 |
258 |
163 |
285 |
80 |
50 |
PML-01-05 |
2000 |
7000 |
234 |
378 |
212 |
426 |
80 |
125 |
PML-01-06 |
3000 |
10500 |
286 |
458 |
261 |
521 |
80 |
220 |
PML-01-07 |
6000 |
21000 |
430 |
600 |
355 |
180 |
80 |
420 |
|
| |
|
| |
|
| |
|
|
