Products List -- Lifting Magnets
Permanent Magnet Lifter

Powered by strongest NdFeB Permanent Magnet and with our unique design, our lifter has below features:

  1. Small and most compact.
  2. No need of electricity and no dangerous from sudden cut off of electricity.
  3. No damage to contacting surface of lifted objects.
  4. The position of magnetism on/off switch is secured by a BUTTON.
  5. With a V shape slot through the center of holding surface, both round and flat steel objects can be lifted.
  6. Safety Factor of all types is 3.5 Minimum.


Permanent Magnet Lifter Technical Specification (3.5 times safety factor)

Model Rated Lifting Strength (KG) Max Pull-off Strength (KG) Size(MM) Max Working Tem (℃) Weight (KG)
W H R
PML-100 100 350 100 62 70 150 ﹤80  3
PML-300 300 1050 170 95 96 205 ﹤80  10
PML-500 500 1750 222 125 115 225 ﹤80  20
PML-600 600 2100 235 125 120 225 ﹤80  22
PML-1000  1000 3500 285 135 140 310 ﹤80  34
PML-2000 2000 7000 446 157 166 413 ﹤80  82
PML-3000 3000 10500 510 230 235 715 ﹤80  225
PML-5000 5000 17500 750 235 240 915 ﹤80  280
PML-6000 6000 21000 753 255 285 915 ﹤80  400

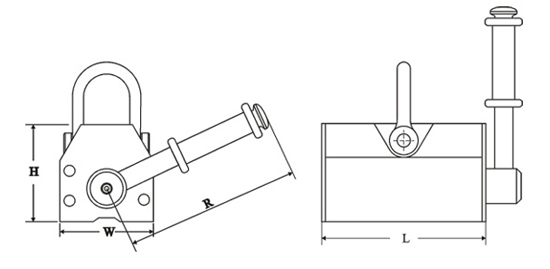

Overall Dimension
